Powerful
Robust and reliability
Excellent performance
Intuitive operation
Dot peen marking technology
DBP1-T1180
|
Marking window
|
110x80mm
|
|
Dimension
|
Marking head 268x195x257mm / Machine Pack 322x452x747mm
|
|
Weight
|
Marking head 5.6kg / Machine Pack 42.1kg
|
|
Machine/controller cable length
|
3m
|
|
Air supply(when in Pneumatic option)
|
0.3~0.5 mpa
|

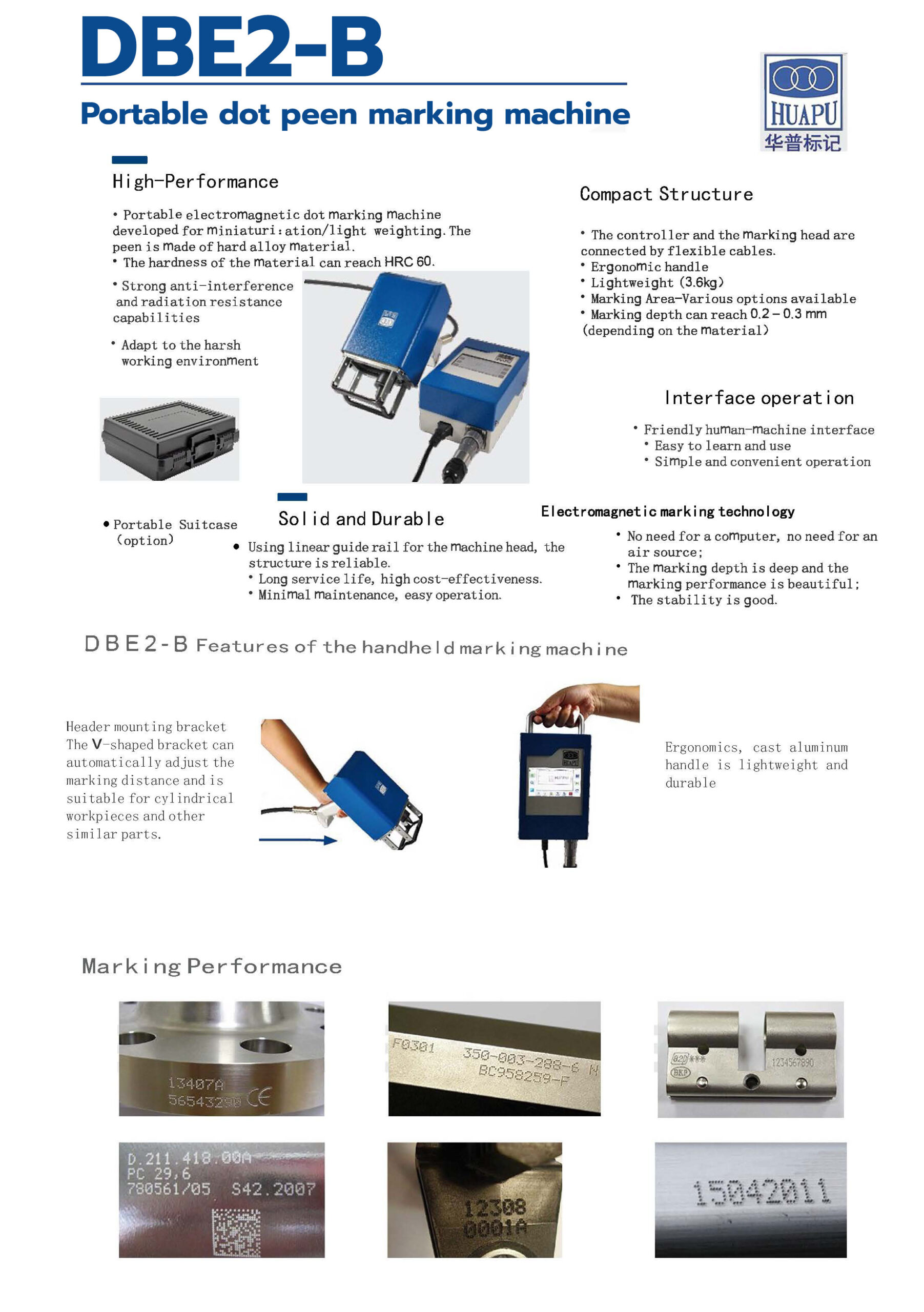

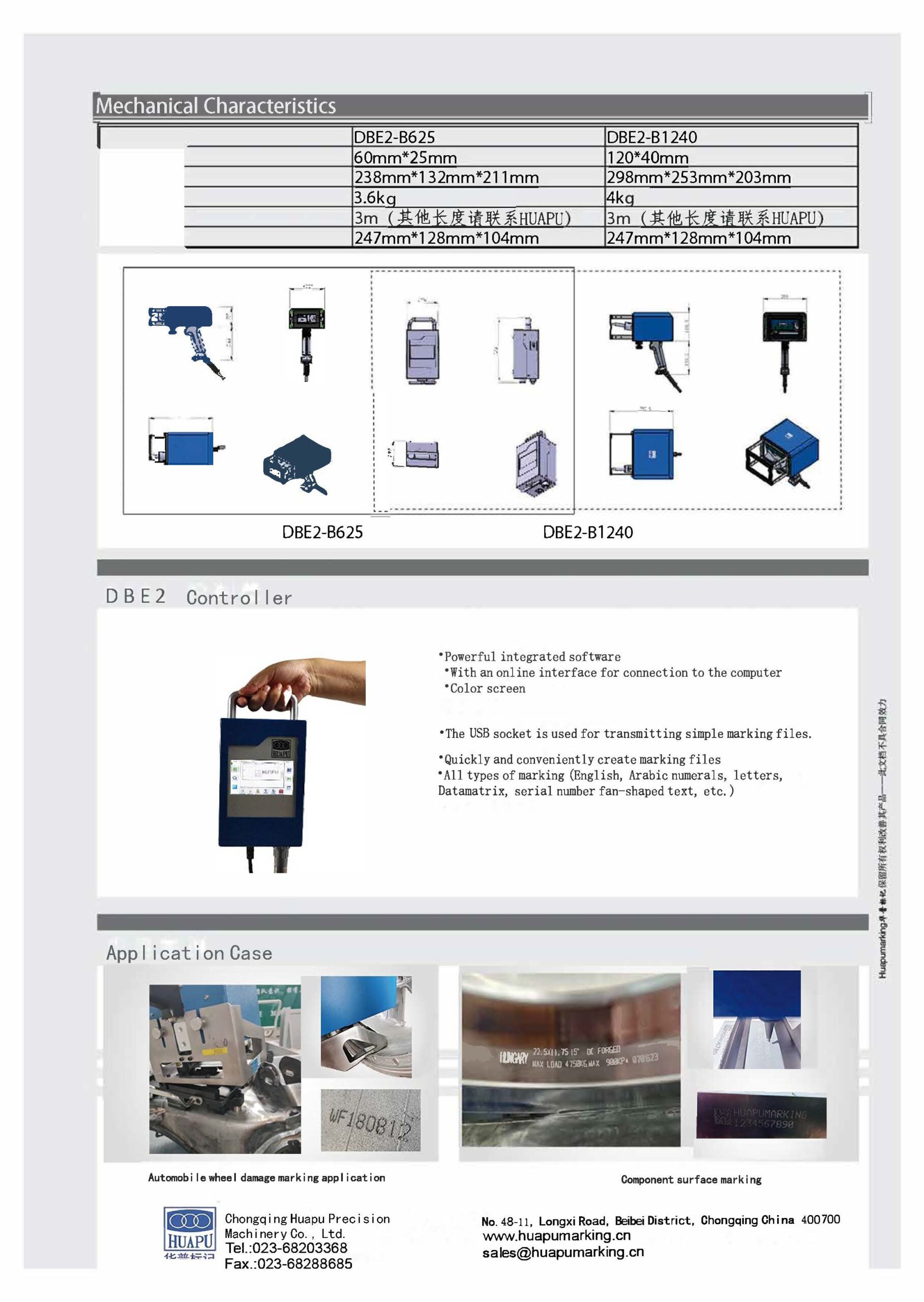

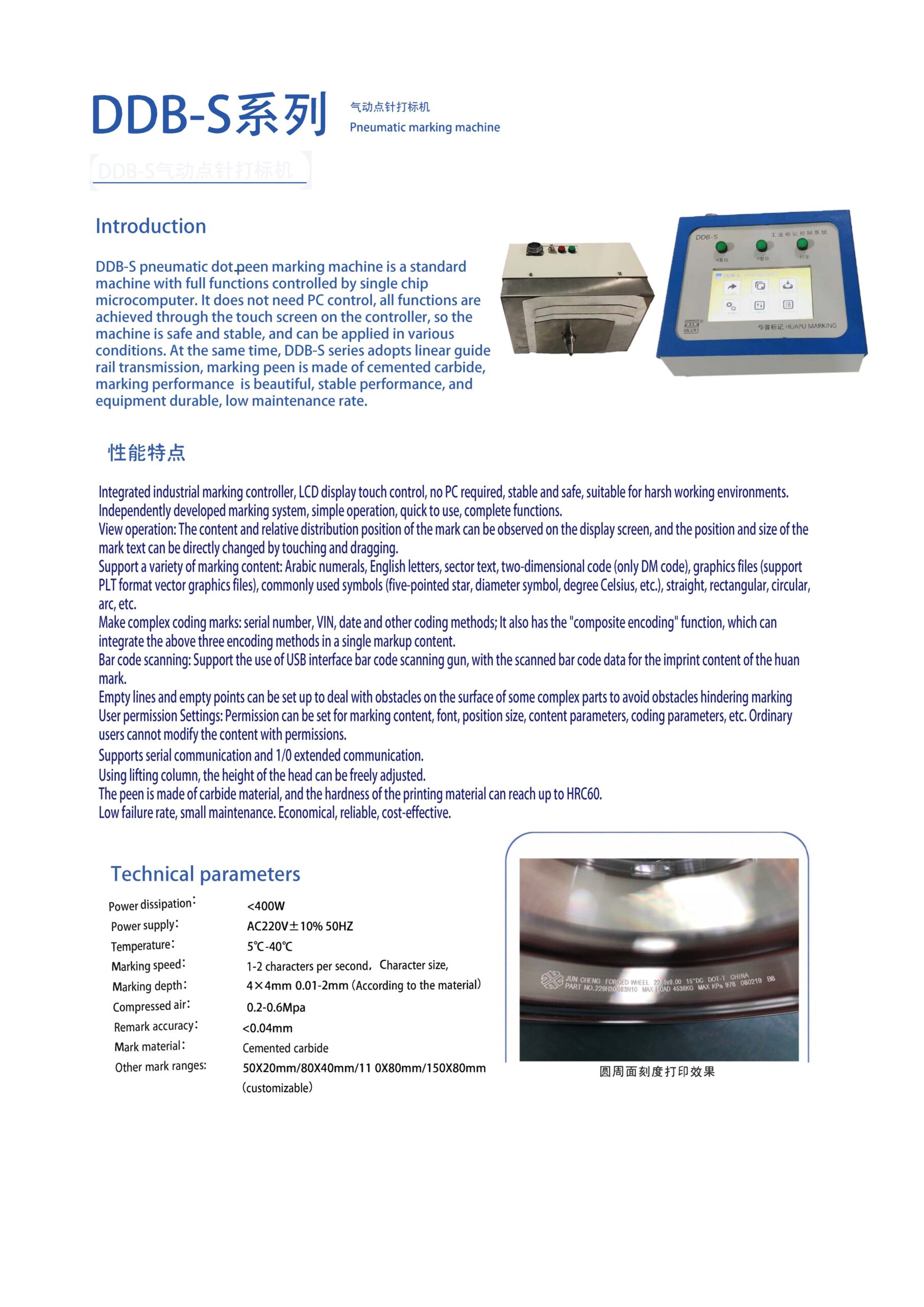

Qualified
Robust and reliability
Easy operation
Excellent performance
Dot peen marking technology
| DBP1-J520 | DBP1-J840 | DBP1-J1180 | |
|---|---|---|---|
|
Marking window
|
50x20mm
|
80x40mm
|
110x80mm
|
|
Size
|
222x130x86mm
|
220x174x162mm
|
256x268x195mm
|
|
Weight
|
3kg
|
6.7kg
|
8kg
|
|
Machine/controller cable length
|
5m (10m optional)
|
5m (10m optional)
|
5m (10m optional)
|
|
Compressed air supply
(when in Pneumatic option)
|
0.3~0.5 mpa
|
0.3~0.5 mpa
|
0.3~0.5 mpa
|

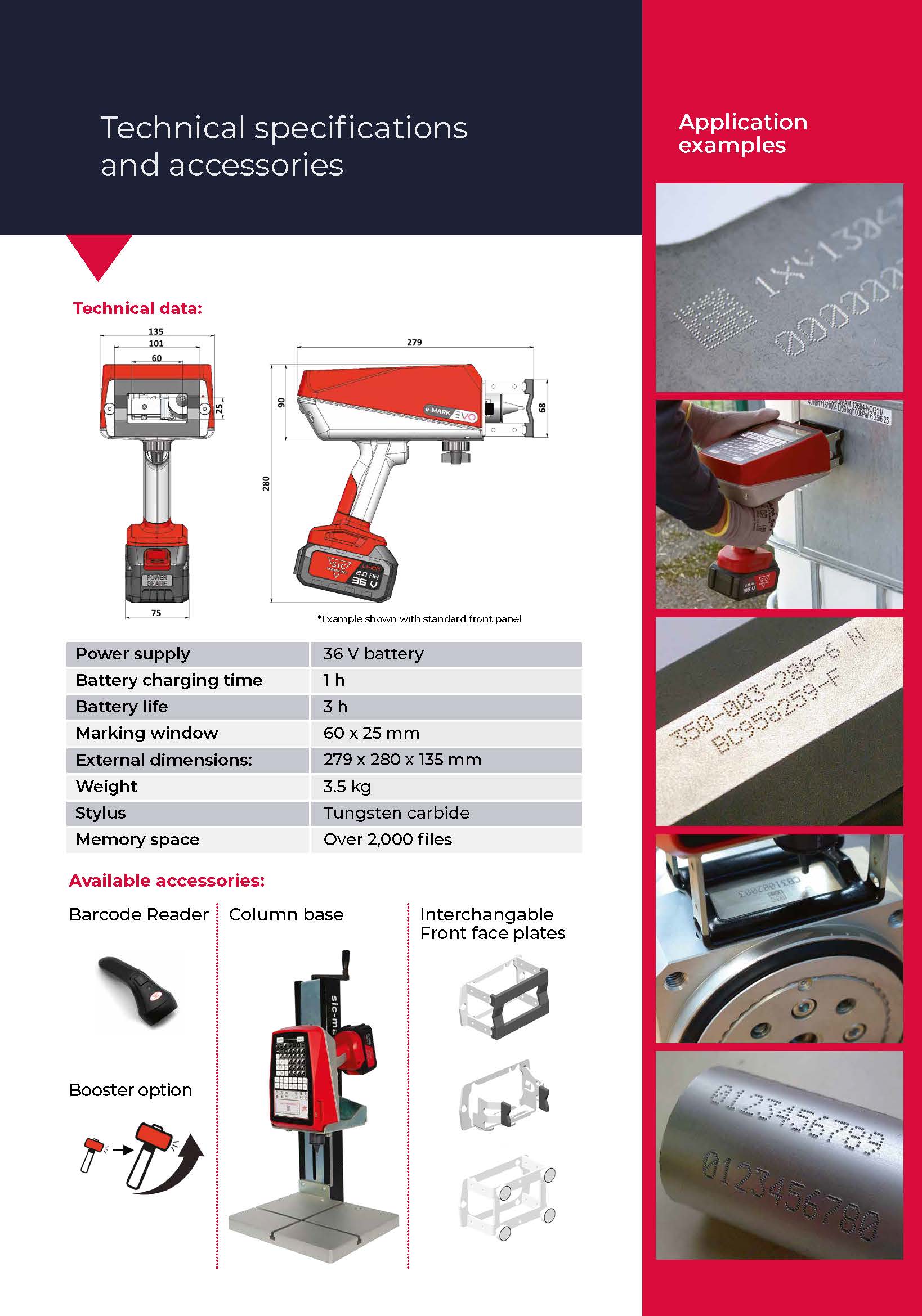

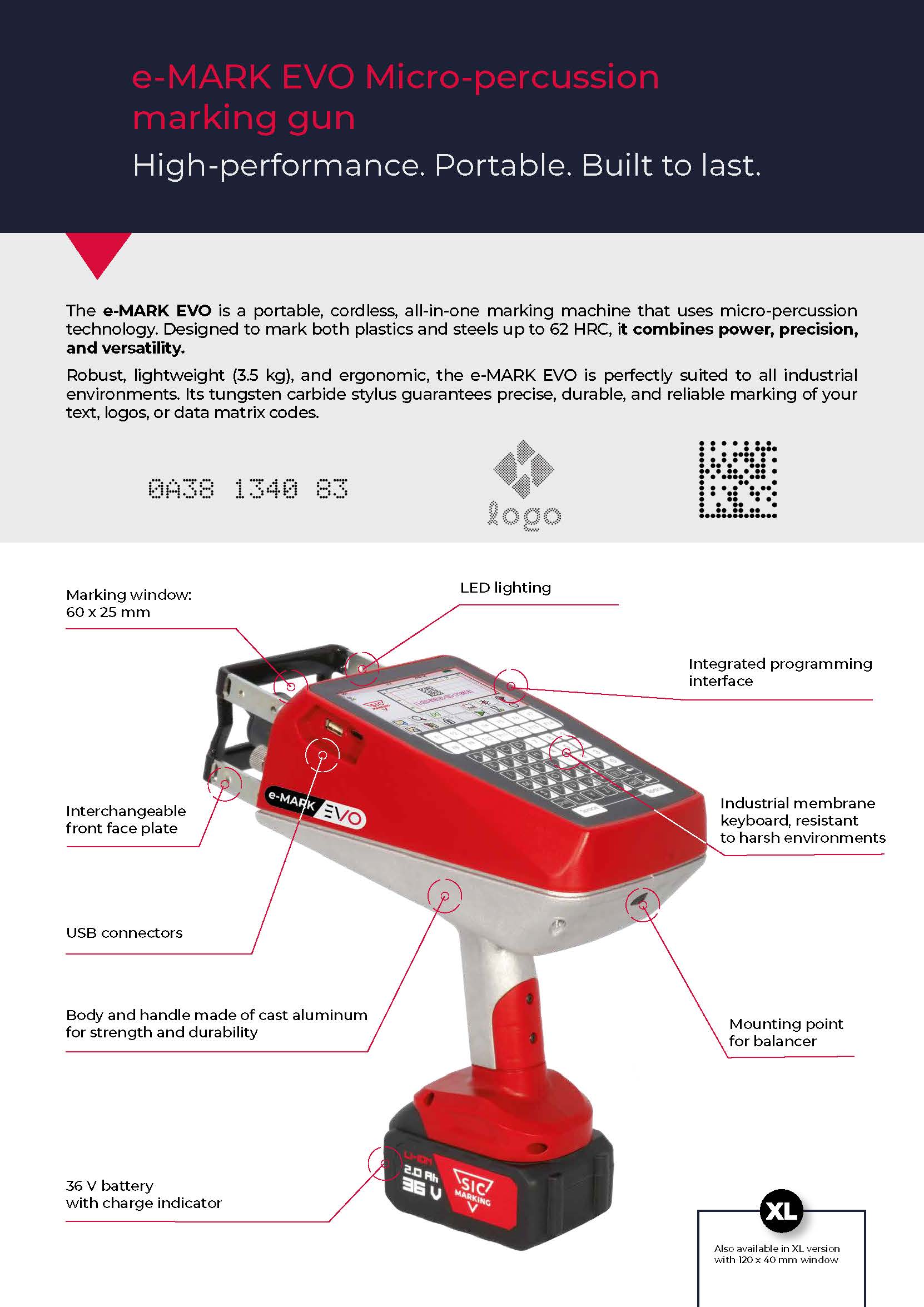

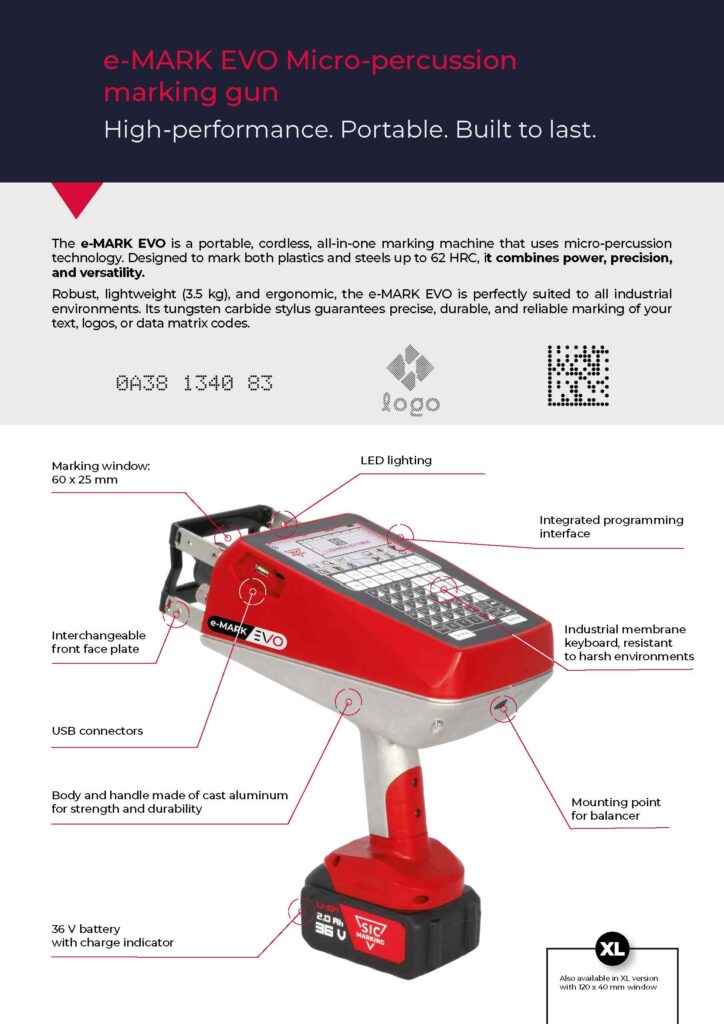

THE LIGHTEST AND MOST COMPACT PORTABLE ON THE MARKET
The e-touch portable marking system allows the identification of parts using dot peen technology. This process ensures reliable and unalterable marking directly into the material. The marking (text, logo, 2D Data Matrix code and QR Code) is defined by a succession of dots produced by a tungsten carbide stylus mounted in an electromagnetic striker assembly.
AN OPTIMISED TOUCH SCREEN
The e-touch incorporates a colour touch screen that offers user-friendly icon-based programming. The ergonomic and fluid interface allows two-handed programming just like a smartphone. Its touch screen can also be used with or without gloves, making it perfectly suited for use in an industrial environment. The SEE&MARK function, a 1:1 full scale viewing window, allows you to preview the marking exactly as it will be applied to the part.
EVER LIGHTER AND MORE COMPACT
The e-touch integrates its controller and touch screen and does not require an additional case to carry. Weighing less than 2kg and with a small footprint of 220 x 210 x 125mm, the e-touch is the most compact and lightweight dot peen marking portable on the market. Nevertheless, it is very robust and rigid thanks to its internal metal structure. In addition, it has an ergonomic handle and an excellent weight balance, offering outstanding manoeuvrability.
A REVOLUTIONARY INTERCHANGEABLE FRONT PLATE SYSTEM
The e-touch has 3 front plates that allow it to adapt to the numerous marking configurations. The standard front plate, specially designed for marking flat parts or cylinders. The magnetic front plate is perfectly adapted to the marking of metal parts.
Finally, the adjustable reduced front plate can be used for marking small parts, recesses or difficult to access areas. The versatility offered by these 3 different front plates allows it to mark a large majority of customer parts without the need for a column, which often proves to be cumbersome and impractical when you are looking for the mobility of a portable system.
The great novelty of the front plate is their fixing system. This is done using a magnetic system that is unique on the market and allows you to change from one side to the other very quickly.
MECHANIC FEATURES
| Marking Window: | 60 x 25 mm |
| Dimensions: | 210 x 125 x 220 mm |
| Weight: | 1.9 kg |
| Robotic Cable: | 5m |
| Stylus: | Carbide |
ELECTRONIC FEATURES
| HD Color Screen: | 95 x 55 mm |
| Keyboard: | Tactile |
| Power: | 100W |
| Supply: | 100 to 240 VAC, 50/60 Hz |
STEERING SOFTWARE
The e1 integrated controller software is used to program all parameters directly through the keyboard (autonomous operation). A Windows tool library also allows programming from a PC.
| Marking Files: | Up to 20,000 |
| Memory: | 100 Mb |
| Variable: | Alphanumerical, Serial, Date, Barcode, and Logos |
| Marking Files: | Upload/Download From a USB Key |
| Fonts: | Courier, 4 x 6, OCR-Bold, OCRA, and OCR |
| Marking Type: | Linear, Radial, Angular, Datamatrix, and Logo |
| Speed: | Up to 2.5 Characters per Second |
| Character size: | 1 mm (minimum) |
| Impact Force: | 1 – 9 Levels |
| Depth: | Up to 0.3 mm |
| Resolution Between Dots: | 0.05 mm |
COMMUNICATIONS
| Ports | USB and Jack |
OPTIONS
THE BEST WEIGHT/PERFORMANCE RATIO ON THE MARKET
The e-touch xl portable marking system allows the identification of parts using dot peen technology. This process ensures reliable and unalterable marking directly into the material. The marking (text, logo, 2D Data Matrix code and QR Code) is defined by a succession of dots produced by a tungsten carbide stylus mounted in an electromagnetic striker assembly.
LARGE TOUCH SCREEN.
The e-touch xl is equipped with a large colour touch screen that allows fluid and user-friendly icon-based programming. With its airy ergonomics, it offers two-handed programming just like a smartphone. Perfectly adapted for use in an industrial environment, the e-touch xl can be used with or without gloves. Finally, the screen resolution has been particularly optimised for a perfect visualization of the marking and a precise zoom on details.
PRECISION AND PERFORMANCE.
The e-touch xl delivers impressive performance. Its large 120 x 50mm marking window makes it easy to mark your logos, barcodes, Datamatrix or alphanumeric codes. It is equipped with an X-Y cross table which allows a constant marking quality and precision over the whole marking window. Ideal for marking heavy, bulky or difficult-to-reach parts, the e-touch xl has been specially designed to be very robust, all for only 2.6kg.
MECHANIC FEATURES
| Marking Window: | 120 x 50 mm |
| Dimensions: | 272 x 194 x 251 mm |
| Weight: | 2,6 kg |
| Robotic Cable: | 5m |
| Stylus: | Carbide |
ELECTRONIC FEATURES
| HD Color Screen: | 95 x 54 mm |
| Keyboard: | Tactile |
STEERING SOFTWARE
The e1 integrated controller software is used to program all parameters directly through the keyboard (autonomous operation). A Windows tool library also allows programming from a PC.
| Marking Files Storage: | Up to 20,000 files |
| Memory: | 100 Mo |
| Variable: | Alphanumerical, Serial, Date, Barcode, Logos |
| Marking Files: | Up/Download from a USB key |
| Fonts: | Courier, 4 x 6, OCR-Bold, OCRA, OCR |
| Marking Type: | Linear, Radial, Angular, Datamatrix, Logo |
| Speed: | Up to 2.5 Characters per Second |
| Character Size: | Minimum 1 mm |
| Impact Force | 1 – 9 Levels |
| Depth: | Up to 0.3 mm |
| Resolution Between Dots: | 0.05 mm |
COMMUNICATIONS
| Ports | USB and Jack |
OPTIONS
ULTRA-FAST AND COMPACT MARKING HEAD
The i-speed machine, which is ultra compact and fast, uses continuous vibrating technology which consists of marking parts in a continuous line and meets an increasingly specific need of the companies in the industrial sector.
Perfectly suited for very high-speed production lines, the i-speed is capable of marking up to 10 characters per second. Its small dimensions (218 x 107 x 62 mm – 8.6 x 4.2 x 2.4 in) allow it to fit easily in a minimum of space.
Subject to a thorough study, these characteristics make the i-speed one of the fastest and most compact machines on the market.
The i-speed uses a pneumatic stylus that eliminates overheating problems and allows the machine to be used at very high speeds. Moreover, the absence of consumables makes it a very affordable machine.
The integrated i-speed system allows very fast permanent dotpeen marking on all types of materials, from plastic to treated steel up to 62 Hrc. The quality and precision of the guidance, the wide tolerance of the stylus/part distance, its speed and the power of the integrated software make it a high-performance device.
MECHANIC FEATURES
| Marking Window: | 50 x 20mm – 1.9 x 0.8 in |
| Dimensions: | 218 x 107 x 62 mm – 8.6 x 4.2 x 2.4 in |
| Weight: | 1.7 kg – 2.2 lbs |
| Connecting Cable: | 5m or 10m – 16.4 or 32.8 ft) |
| Stylus: | Tungsten Carbide 60 mm – 2.4 in |
| Power | compressed air – 6 bar |
ELECTRONIC FEATURES
Optimized for flawless integration on automated product lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be installed to control a motorized column and/or rotary axis. Self-diagnostic and machine history functions are also included.
The e10 R can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.
| Dimensions: | 112 x 380 x 222 mm |
| Weight: | 5 kg |
| LCD Screen Resolution: | 480 x 272 p. |
| Keyboard: | QWERTY-Integrated, Membrane Overlay |
| Power: | 300W |
| Power Supply: | Single Phase, 85 to 260VAC, 50-60Hz |
| Number of Controlled Axes: | 2 (optional 3 and 4 axes available) |
| Card Options: | Booster (deep marking) and Ethernet (communication) |
| USB Port: | Transfer of Marking Files |
STEERING SOFTWARE
| Marking Files: | More than 2000 |
| Memory: | 7110 Ko |
| Alphanumeric Characters: | Serial Number, Date Coding |
| Logos: | Creation from PC software |
| Fonts: | Arial, Courier, OCR, and OCRA |
| Style: | Angular, Radial, Inverse, Mirror |
| Speed: | Up to 5 Characters per Second |
| Character Size: | From 0.1 mm to 99 mm |
| Impact Force: | 9 Adjustable Levels |
| Depth: | Up to 0.5 mm |
| Maximum Stylus Stroke: | Up to 8 mm |
| Work Shift Management: | 10 Shifts |
| Password Protection: | 3 Levels of Security |
| Historical Function: | Password Protected |
| Maintenance Assistance: | Auto-diagnostic Component |
| Languages Available: | 17 |
COMMUNICATIONS
| Ports: | RS232, RS422, USBx2, RS485, Profibus, and Ethernet Optional Board |
| Inputs/Outputs: | 16 |
| External Keyboard Input: | USB |
| External Output: | 5V-0.5A and 24V-0.5A |
| Logos: | Creation and Transfer Software |
| File Backup on PC: | USB Key for Transfer |
| Database Link: | Optional |
OPTIONS
The e1 p63c portable engraving machine is particularly suited for use with heavy or oversized components. Thanks to its portable and compact design, it fits easily into difficult-to-access places. The ergonomic design of the handle and back plate creates a sturdy, well-balanced machine suitable for longterm operation as it reduces user fatigue.
The p63c’s dot peen marking machine is driven by electromagnetic technology which drives a tungsten carbide stylus into the surface material. Known for its high quality, deep marks, this dot peen marking machine is particularly suitable for creating data matrix codes. Capable of marking almost any material known to man, the precise, powerful stylus assembly alllows for deep, sharp marking, while the generous marking window (60 x 25 mm) allows for the marking of high, easily read characters
MECHANIC FEATURES
| Marking Window: | 60 x 25 mm |
| Dimensions: | 215 x 135 x 203 mm |
| Weight: | 2.6 kg |
| Robotic Cable: | 3m |
| Stylus: | Carbide |
ELECTRONIC FEATURES
SIC Marking’s e1 Controller independently operates and manages this marking machine, meaning no PC is required for operation. Initial setup can be done from a PC using the e1v1 software, while the USB port allows file transfer and marking software updates.
The e1 was ruggedly designed for industrial applications. It contains no openings or ventilation components providing optimal protection of interior electronic components. Thanks to its large aluminum handle, the grip is more comfortable than previous designs. The HD color screen features an integrated graphic display, making it easy to navigate. Using the protected membrane keyboard, programming is simple: the e1 allows for the direct change of settings and marking designs via manual input, or pictogram colors. The controller only weighs 2kg. Coupled with its marking unit, it offers perfect balance for increased mobility and maneuverability.
| Dimensions: | 301 x 121 x 87 mm |
| Weight: | 2 kg |
| HD Color Screen: | 95 x 54 mm |
| Keyboard: | Integrated |
| Power: | 100W |
| Supply: | 100 to 240 VAC, 50/60 Hz |
STEERING SOFTWARE
The e1 integrated controller software is used to program all parameters directly through the keyboard (autonomous operation). A Windows tool library also allows programming from a PC.
| Marking Files: | Up to 20,000 |
| Memory: | 100 Mb |
| Variable: | Alphanumerical, Serial, Date, Barcode, and Logos |
| Marking Files: | Upload/Download From a USB Key |
| Fonts: | Courier, 4 x 6, OCR-Bold, OCRA, and OCR |
| Marking Type: | Linear, Radial, Angular, Datamatrix, and Logo |
| Speed: | Up to 2.5 Characters per Second |
| Character size: | 1 mm (minimum) |
| Impact Force: | 1 – 9 Levels |
| Depth: | Up to 0.3 mm |
| Resolution Between Dots: | 0.05 mm |
COMMUNICATIONS
| Ports | USB and Jack |
OPTIONS
The p63 is a portable, handheld dot peen marker designed for use with the e10 controller. Its lightweight portability makes it ideal for marking large, difficult-to-access parts, and its arched front plate allows for sturdy marking on both flat and cylindrical surfaces. Capable of marking plastics and metals (up to 62HRC), the rugged cast aluminum body, ABS cover, and stainless steel front plate make the p63 a mobile, lightweight, and reliable tool. The marking pin is solenoid actuated and requires minimal maintenance and no air supply system.
MECHANIC FEATURES
| Marking Window: | 60 x 25 mm |
| Dimensions: | 260 x 139 x 211 mm |
| Weight: | 3.2kg (7.5 lbs.) |
| Robotic Cable: | 7.5m (up to 15m available) |
| Stylus: | Carbide 60 mm |
| Stability: | V-Shaped Front with Anti-Slip Surface |
| Lighting: | LEDs |
| Setup Positioning: | Adjustable Memory Front Plate |
ELECTRONIC FEATURES
The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.
Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10’s (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a “smart” user friendly machine.
| Dimensions: | 322 x 380 x 112 mm |
| Weight: | 5 kg |
| LCD Screen Resolution: | 480 x 272 p. |
| Keyboard: | QWERTY-Integrated, Membrane Overlay |
| Power: | 300 watt |
| Power Supply: | Single Phase (85 to 260VAC, 50-60Hz) |
| Number of Controlled Axis: | 2 (3 and 4 axis available) |
| Card Options: Booster (deep marking) and Ethernet (communication): | |
| USB Port: | Transfer of Marking Files |
STEERING SOFTWARE
| Marking Files: | More Than 2000 |
| Memory: | 7110 Ko |
| Alphanumeric Characters: | Serial Number, Date Coding |
| Logos: | Creation from PC software |
| Datamatrix: | Up to 348 Characters, 48 x 48 dots |
| Fonts: | Arial, Courier, OCR, and OCRA |
| Style: | Angular, Radial, Inverse, and Mirror |
| Speed: | Up to 5 Characters Per Second |
| Character Size: | From 0.1 mm to 99 mm |
| Impact Force: | 9 Adjustable Levels |
| Depth | Up to 0.5 mm |
| Resolution Between Dots: | 0.05 mm |
| Maximum Stylus Stroke: | Up to 8 mm |
| Work Shift Management: | 10 shifts |
| Password Protection: | 3 Security Levels |
| Historical Function: | Password Protected |
| Maintenance Assistance: | Auto-Diagnostic Component |
| Languages Available: | 17 |
COMMUNICATIONS
| Ports: | RS232, RS422, USBx2, RS485, Profibus, and Ethernet Optional Board |
| Inputs/Outputs: | 16 |
| External keyboard input: | USB |
| External output: | 5V-0.5A and 24V-0.5A |
| Logos: | Creation and Transfer Software |
| File Backup on PC: | USB Key for Transfer |
| Database Link: | Optional |
OPTIONS
